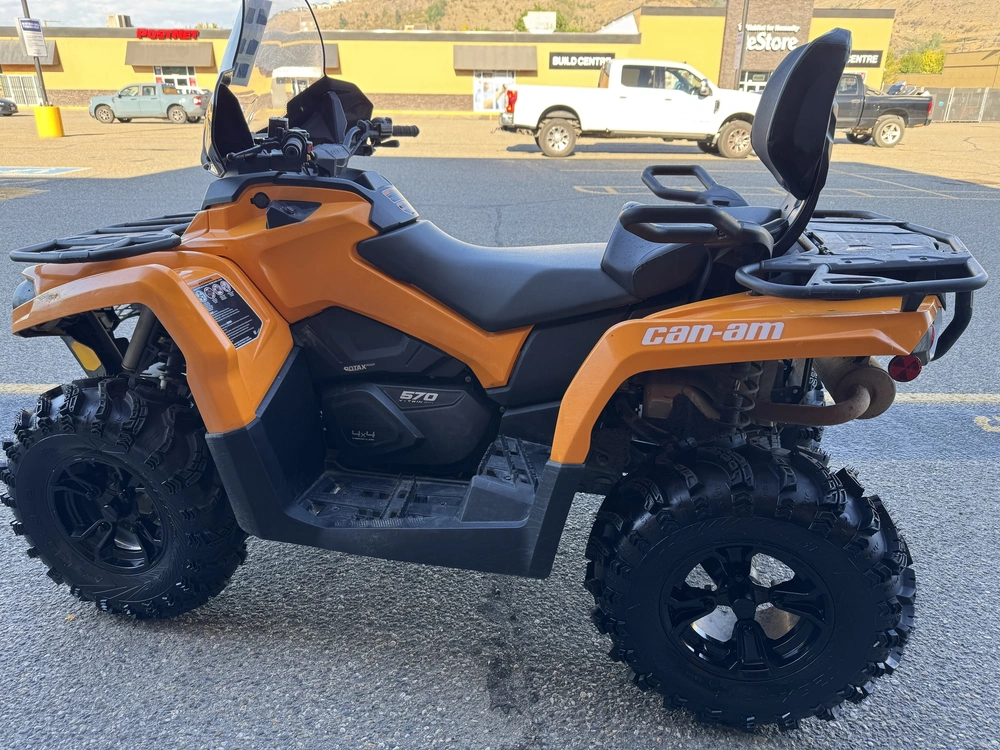

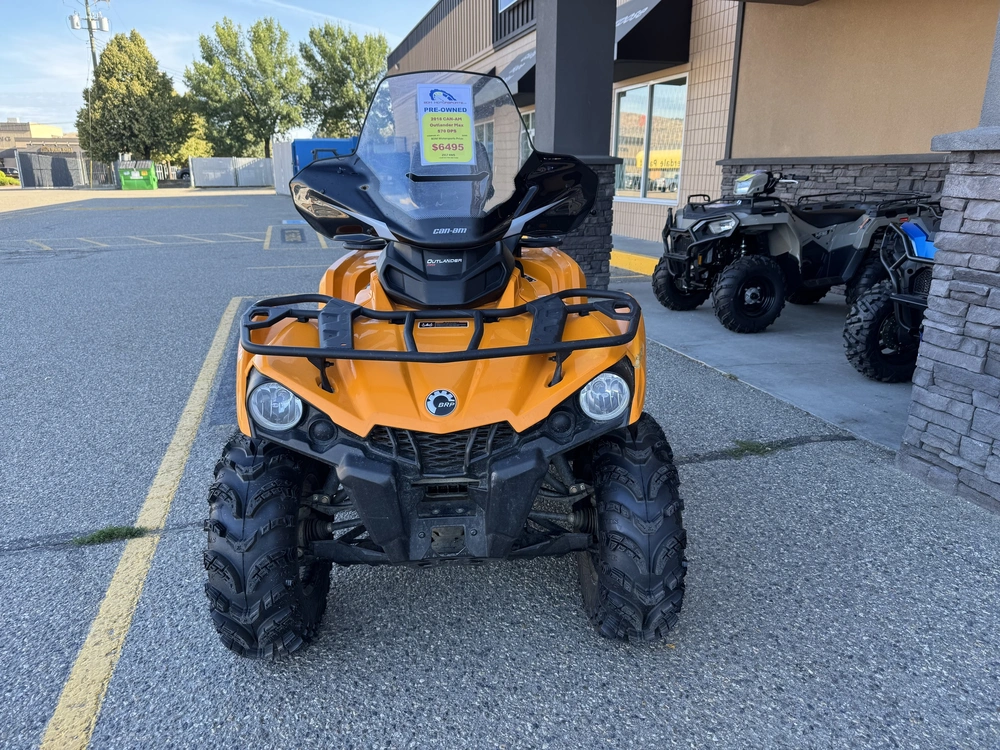

2018 Can-Am Outlander MAX DPS 570

• Continuously Variable Transmission (CVT)
with engine braking
• Tri-Mode Dynamic Power Steering (DPS)
• Double A-arm front suspension
• Torsional Trailing arm Independent (TTI)
rear suspension
• 12-in. cast-aluminum wheels
• 1,300-lb (590 kg) towing capacity
• Surrounding Spar Technology (SST) G2 frame with Geometric Contact Control
• 500-W magneto

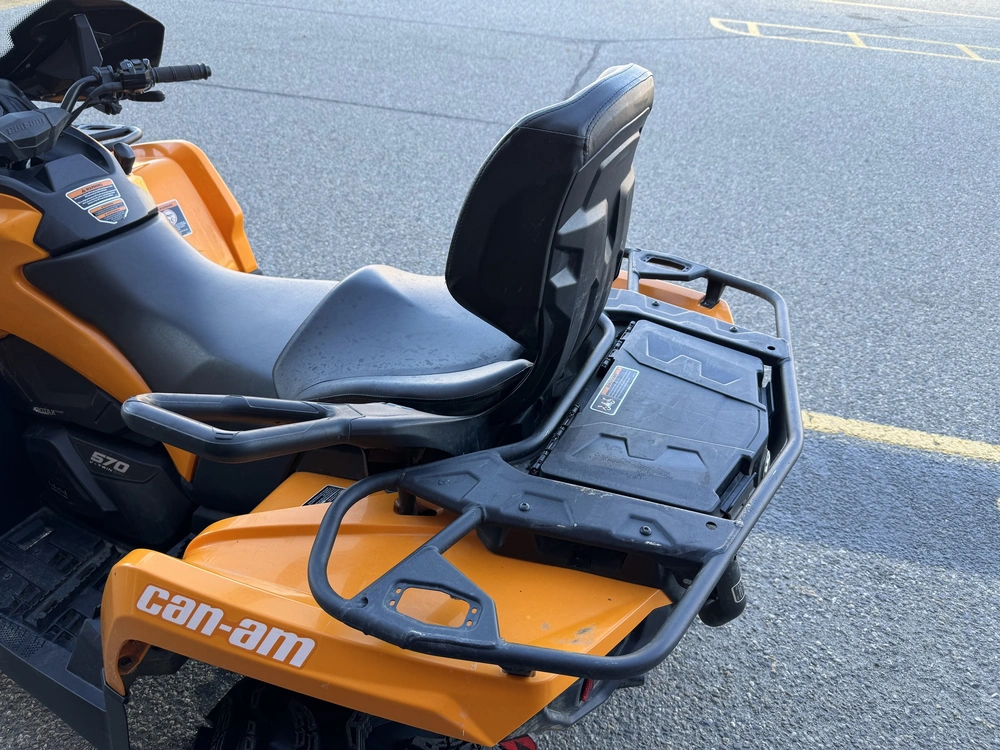

• Steel racks with LinQ quick-attach
accessory system and a combined
360 pounds (163.3 kg) capacity
• 2.9-gal (10.9 L) water-resistant
rear compartment
• Dynamic passenger comfort ergonomics
• Multiposition passenger handgrips
• Raised floorboards

ENGINE: 48 hp, Rotax 570 cc V-twin, liquid cooled
Fuel Delivery System: Electronic Fuel Injection (EFI)
Transmission: CVT, P / R / N / H / L, standard engine braking
Drive Train: Selectable 2WD / 4WD with Visco-Lok‡ QE auto-locking front differential
Power Steering: Tri-Mode Dynamic Power Steering (DPS)

Front Suspension: Double A-arm 9 in. (22.9 cm) travel
Front Shocks: Oil
Rear Suspension: Torsional Trailing arm Independent (TTI) 8.8 in. (22.4 cm) travel
Rear Shocks: Oil

Front Brakes: Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers
Rear Brakes: Single 214 mm ventilated disc brake with hydraulic twin-piston caliper

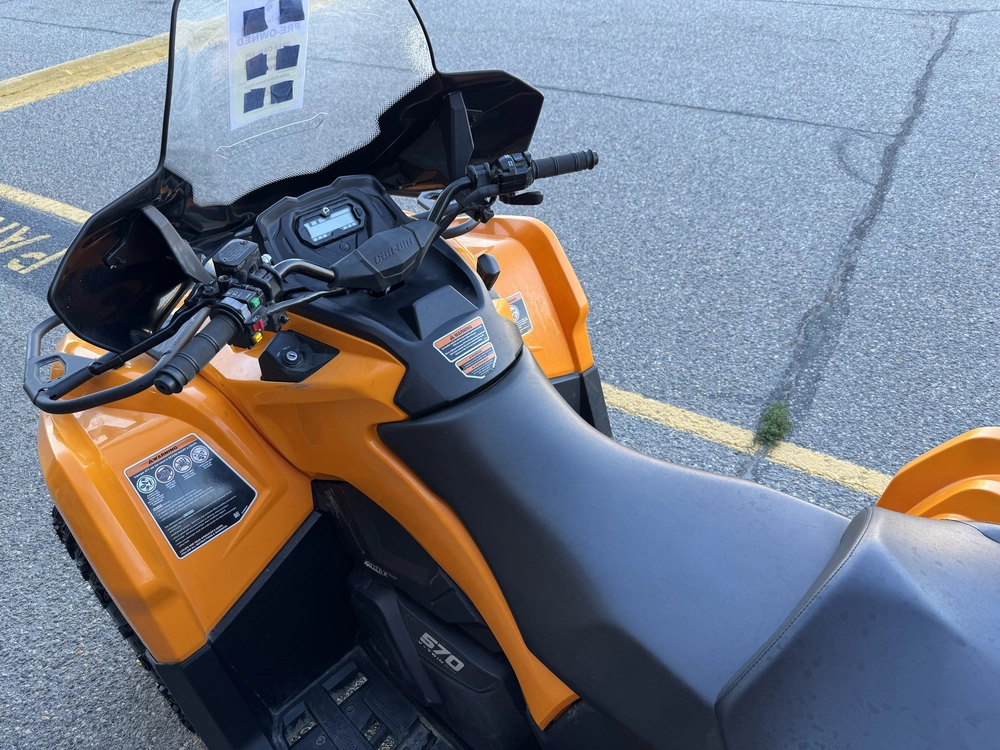

Gauge: Multifunction Digital: Speedometer, tachometer, odometer,
trip & hour meters, fuel, gear position, 4 x 4 indicator, diagnostics, clock
Instrumentation: Lighter type DC outlet in console, standard connector in the back (15-A)
Lighting: 70 W from dual 35-W front light / brake light
Winch: Prewired for available winch
Seat: Convertible Rack System (CRS)
Protection: N/A
Anti-theft System: N/A

L x W x H
91 x 46 x 52.5 in.
(231 x 116.8 x 133 cm)
Wheelbase
59 in. (149.9 cm)
Ground Clearance
10.5 in. (26.7 cm)
Seat Height
33.8 in. (85.8 cm)
Engine / Dry Weight*
450 / 715 lb (324 kg)
570 / 741 lb (336 kg)
Rack Capacity
Front: 120 lb (54.4 kg)
Rear: 240 lb (109 kg)
Storage Capacity
Rear: 2.9 gal (10.9 L)
Towing Capacity
1,300 lb (590 kg)
Fuel Capacity
5.4 gal (20.5 L)
