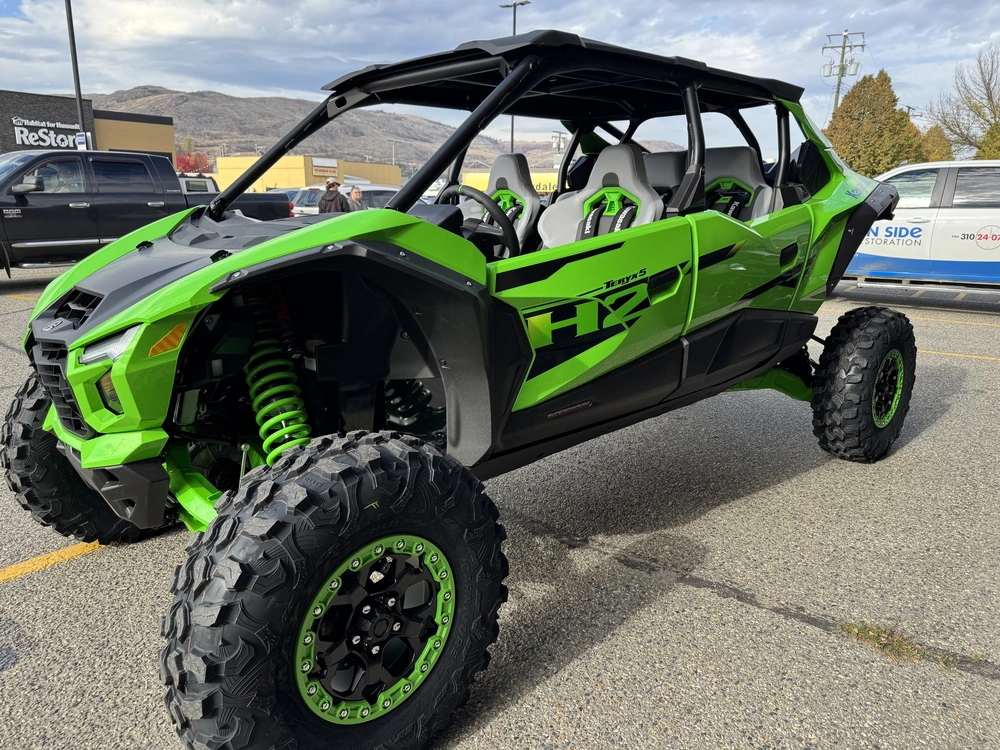

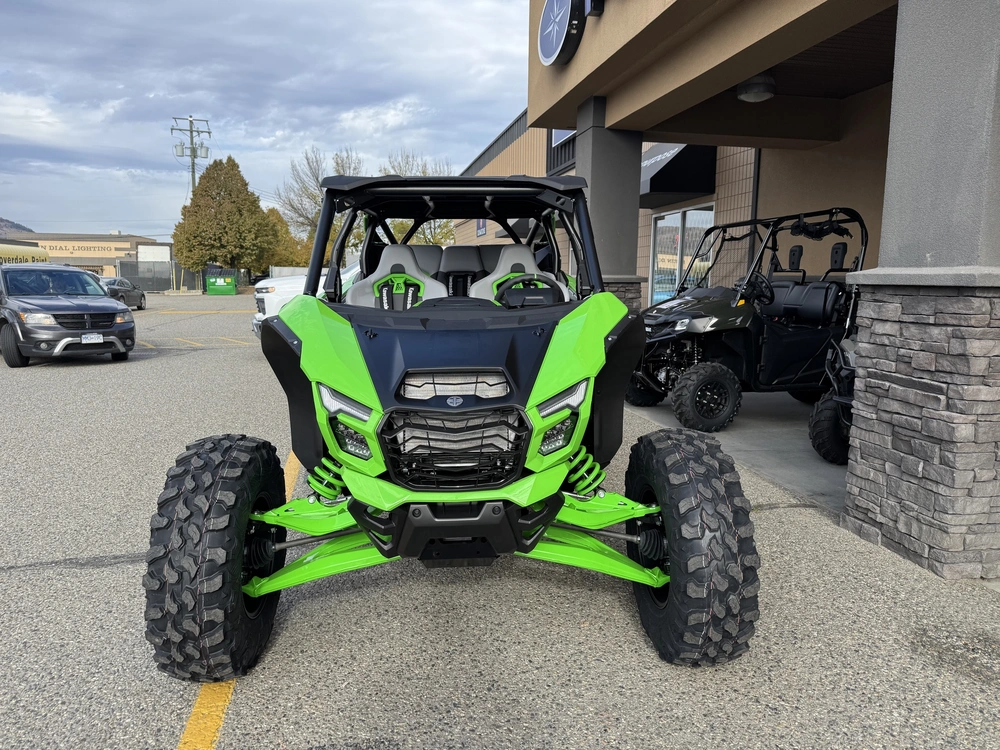

2026 Kawasaki Teryx5 H2 Deluxe eS

OVERVIEW   The new Teryx5 H2 high-performance side by side is designed for dune and desert domination. Its 250 horsepower* 999cc in-line four-cylinder supercharged engine is harnessed by a continuously variable transmission (CVT) and a highly rigid frame complemented by long-travel suspension that help balance the engine’s massive power for maximum control. Predictable handling and confident stopping power add to the well-balanced package delivering maximum fun that can be shared with the whole family. FEATURING:

• 253 PS* 999cc IN-LINE 4-CYLINDER SUPERCHARGED ENGINE
• SMOOTH, LINEAR POWER AND ACCELERATION WITH CONTINUALLY VARIABLE TRANSMISSION (CVT)
• ON-THE-FLY ELECTRICALLY SELECTABLE 2WD/4WD & FRONT DIFFERENTIAL LOCK AND ADJUSTABLE POWER MODE SELECTION
• HIGHLY RIGID FRAME WITH INTEGRATED ROLLOVER PROTECTION STRUCTURE (ROPS)

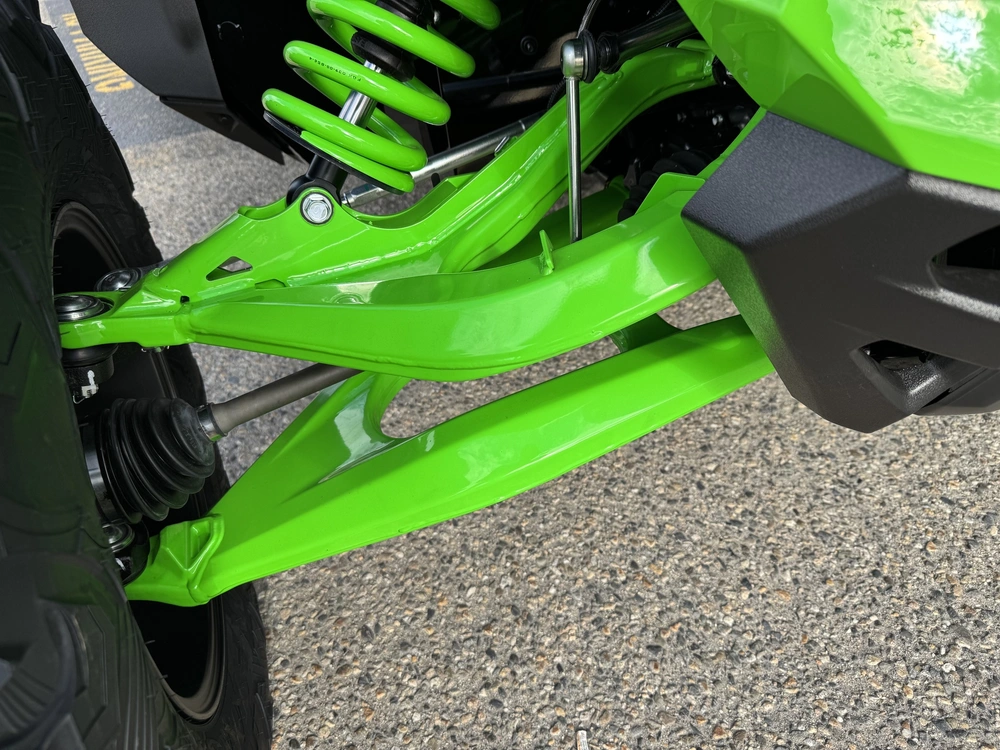

• GROUND-HUGGING LONG-TRAVEL SUSPENSION WITH FORTIFIED A-ARM & TRAILING-ARM SUSPENSION
• 270 mm LARGE-DIAMETER HYDRAULIC DISC BRAKES FOR CONFIDENT STOPPING POWER
• SLEEK, LOW-PROFILE SILHOUETTE WITH AGGRESSIVE FRONT-END DESIGN & LED LIGHTING

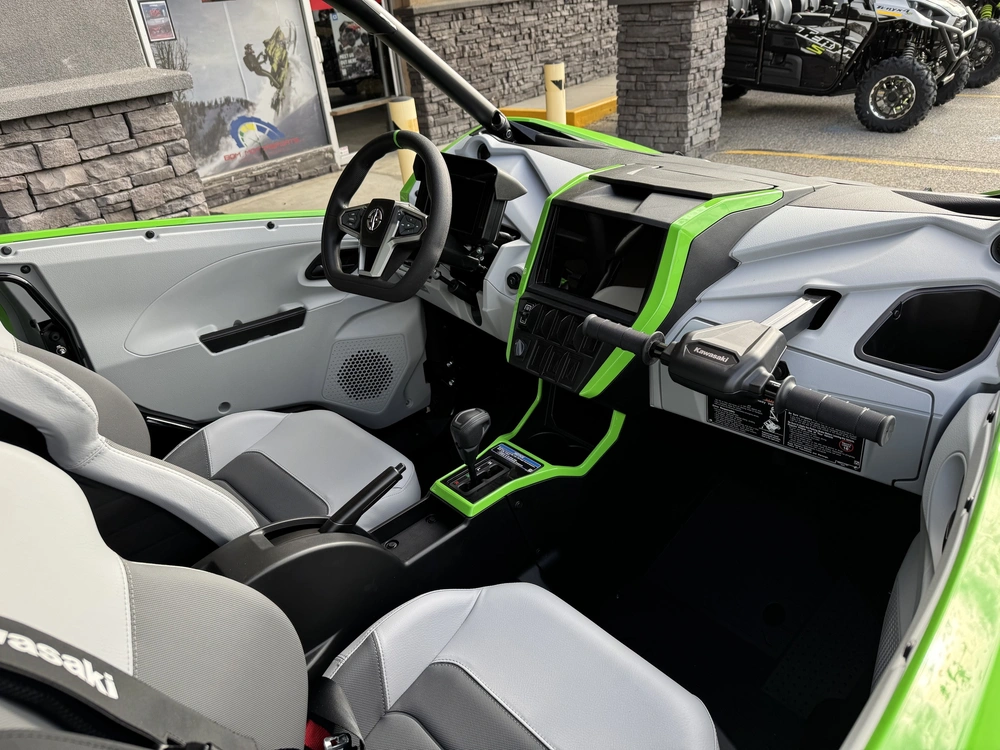

• ROOMY, AUTOMOTIVE-STYLE INTERIOR WITH UP TO 5 PASSENGER SEATING
• D-SHAPED STEERING WHEEL WITH TILT STEERING & AUTOMOTIVE-STYLE CONTROL INTERFACE
• 7" HIGH-GRADE FULL-COLOR TFT INSTRUMENTATION WITH SMARTPHONE CONNECTIVITY VIA RIDEOLOGY THE APP POWERSPORTS

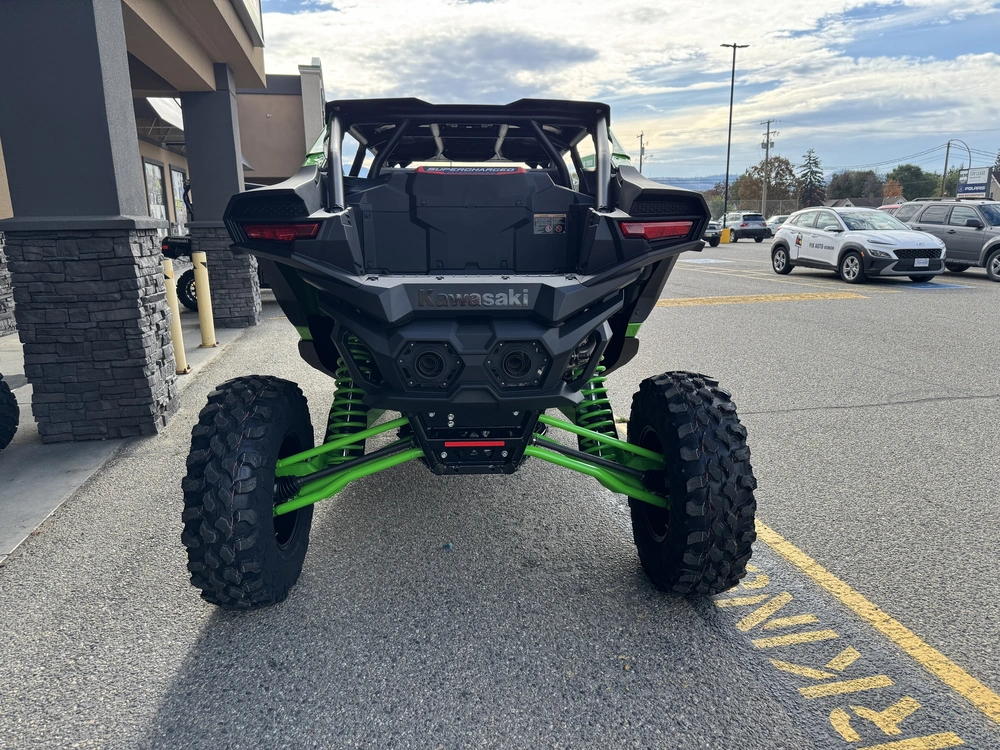

• DISTINCTIVE DUAL-EXIT EXHAUST
• 3D KAWASAKI RIVER MARK EMBLEM

ADDITIONAL VEHICLE FEATURES:

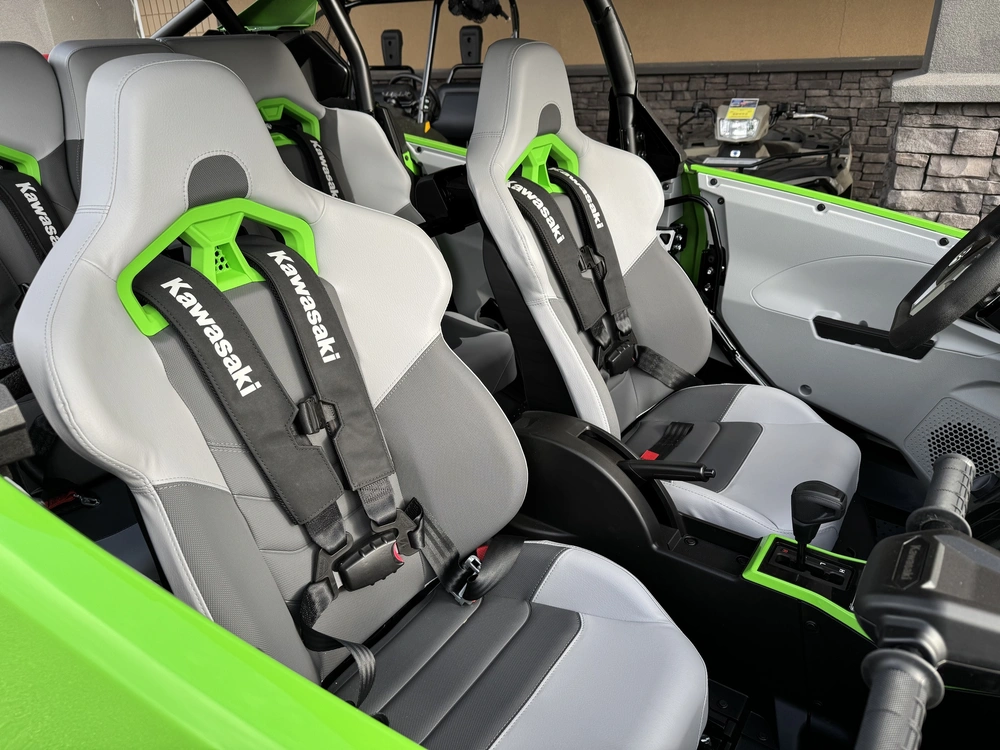

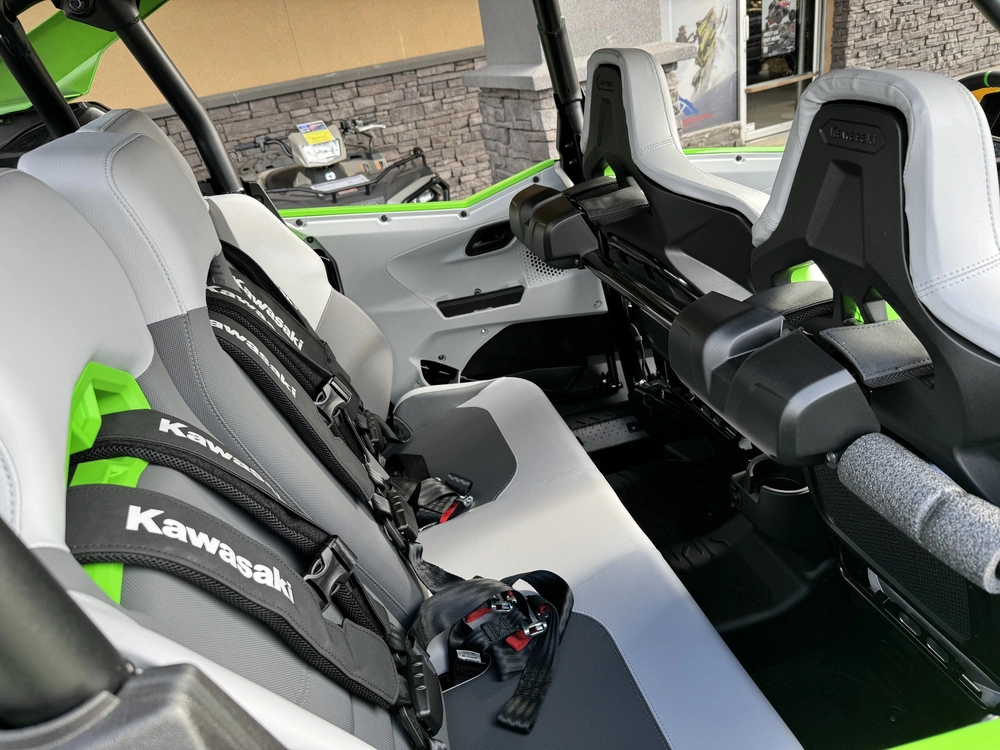

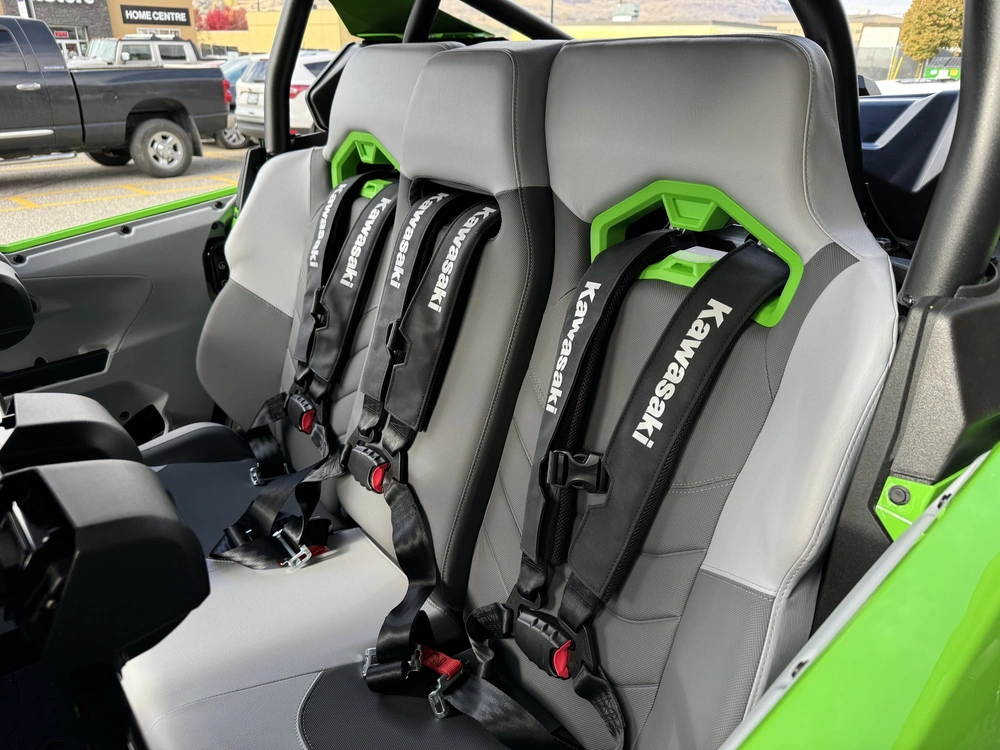

• 2 high-backed bucket seats up front, 3-person high-backed contoured sport seat in the rear, all equipped with 4-point seatbelts
• Predictable handling with speed-sensitive Electric Power Steering (EPS)

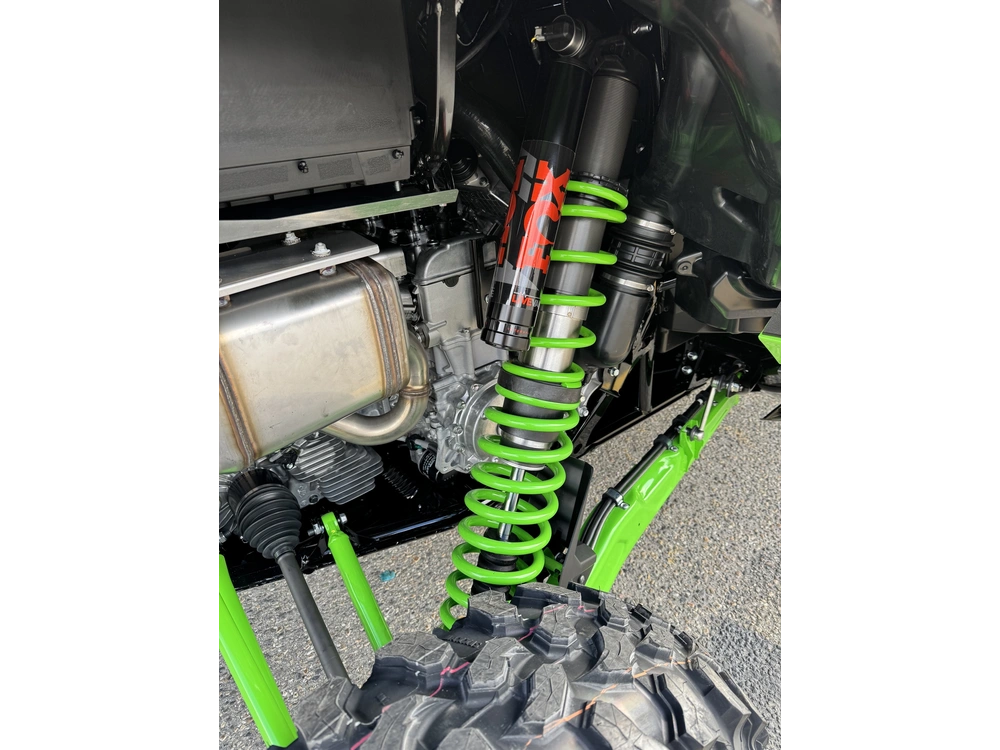

• FOX 3.0 Live Valve Internal Bypass shocks
• Kawasaki Electronic Control Suspension (KECS) with Acceleration Sensors
• 10" Garmin Tread off-road navigation system with audio system capability
• 33" MAXXIS Carnivore Plus tires with 16" aluminum wheels
• Abundant storage & convenience features including USB outlets, DC socket, cup holders, and more
• Plastic roof

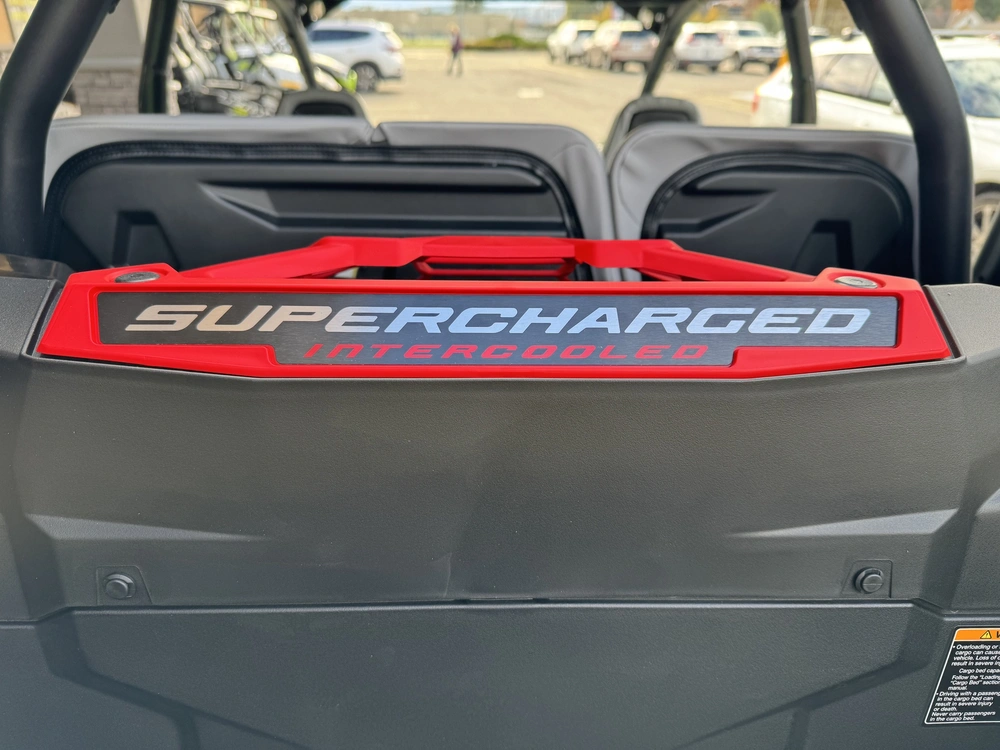

POWER   Power 186.2 kW* {253 PS*} / 9,000 rpm (*This vehicle’s engine output was measured according to ISO standard 4106.) Torque 198.3 Nm {20.2 kgfm} / 8,800 rpm Engine 999cc, liquid-cooled, 4-stroke, DOHC 16-valve in-line four Bore x Stroke 73.4 x 59.0 mm Compression Ratio 7.8:1 Fuel System Fuel injection: ø40 mm x 4 with dual injection Intake System Kawasaki Supercharger Ignition Digital Starting Electric Lubrication Forced lubrication, wet sump with liquid-cooled oil cooler Transmission Dual-range (high/low) CVT with reverse Final Drive 2WD/4WD, shaft, dual-mode front differential



CAPABILITY   Frame Ladder type, tubular steel Front Suspension / Wheel Travel Double wishbone, FOX 3.0 Live Valve Internal Bypass shocks with piggyback reservoir, KECS-controlled compression damping, and manually-adjustable spring preload / 589 mm (23.2 in) Rear Suspension / Wheel Travel 4-Link Trailing Arm rear suspension, FOX 3.0 Live Valve Internal Bypass shocks with piggyback reservoir, KECS-controlled compression damping, and manually-adjustable spring preload / 609 mm (24.0 in) Steering Rack and pinion with Electric Power Steering Rake / Trail 8.0° / 53 mm Steering Angle (L/R) 36° (IN) / 29° (OUT), 36° (IN) / 29° (OUT) Front Tires MAXXIS Carnivore Plus 33 x 10.00R16, with bead-lock wheels Rear Tires MAXXIS Carnivore Plus 33 x 10.00R16, with bead-lock wheels Front Brakes Dual ø270 mm discs with three-piston (ø34-38-34 mm) calipers Rear Brakes Dual ø270 mm discs with twin-piston (ø38 mm x2) calipers Parking Brake Auto-adjust mechanical disc



DETAILS   Dimensions (LxWxH) 4,050 x 1,880 x 1,875 mm (159.4 x 74.0 x 73.8 in) Wheelbase 3,200 mm (126.0 in) Road Clearance 410/420 mm (standard/max preload) (16.1/16.5 in (standard/max preload)) Seat Height 810 mm (front) / 820 mm (rear L&R) / 850 mm (rear centre) (31.9 in (front) / 32.3 in (rear L&R) / 33.5 in (rear centre)) Curb Weight* 1,136 kg (2,504 lb) Estimated Dry Weight** 1,075 kg (2,370 lb) Fuel Capacity 56 litres Tread (F/R) 1,655 mm (65.2 in) / 1,630 mm (64.2 in) Turning Radius 7.6 m (24.9 ft) Cargo Bed Dimensions (LxWxH) 370 x 840 x 230 mm (14.6 x 33.1 x 9.1 in) Cargo Bed Capacity 136 kg (300 lb) Seating Capacity 5 Vehicle Load Capacity 488 kg (1,076 lb) Lighting 2x LED headlights, 2x accent lights Instrumentation 7” high-grade full-colour TFT LCD screen with speedometer, tachometer, fuel gauge, gear indicator (L, H, N, R), Driving Mode (2WD/4WD/4WD+Diff Lock), Power Mode (Full/Mid/Low), Suspension Mode (Soft/Normal/Firm), clock, CVT temperature, boost temperature; selectable display that includes: digital tachometer, odometer, dual trip meters, total time, trip time, average speed, engine temperature, intake air temperature, battery voltage; connected indicator, Economical Riding Indicator, maintenance reminder (2 driver-selectable reminders), and a range of indicators and warning lamps Warranty 6 months Kawasaki Protection Plus 12 / 24 / 36 / 48 months
