ADDITIONAL VEHICLE FEATURES:
- Selectable 2WD/4WD, dual-mode rear differential with diff. lock
- Continuously Variable Transmission (CVT) with (H,L,N,R)
- 12” cast aluminum wheels with 26” Duro tires
- 4 high-intensity LED headlights
- Sun top and special graphics

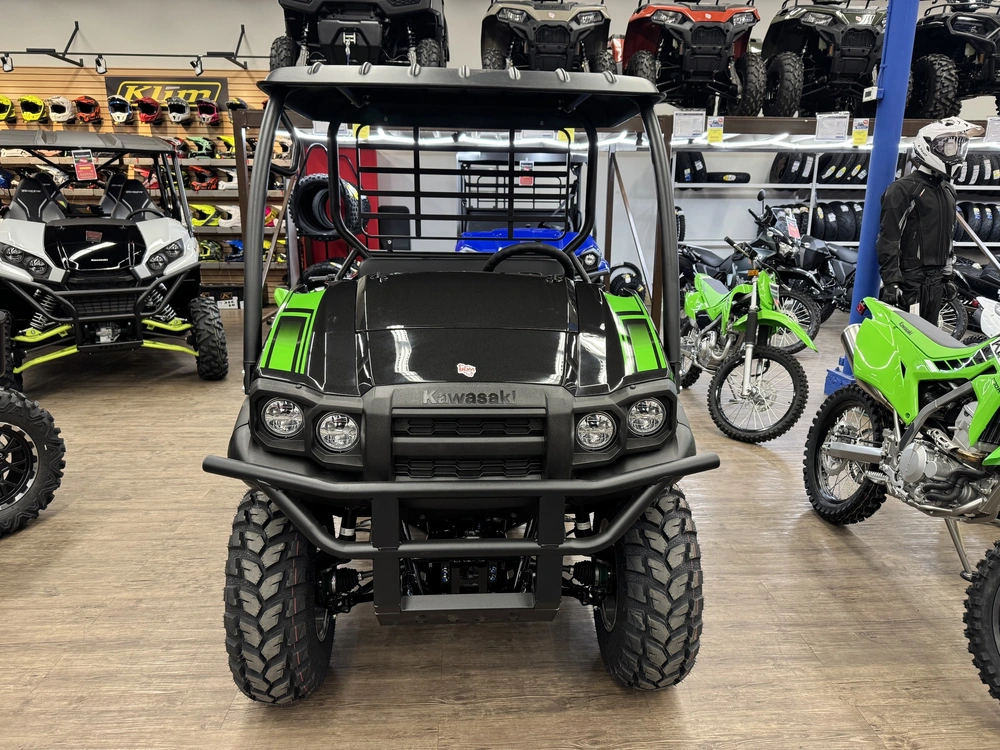

Four high-intensity LED headlights
Aluminum wheels and special graphics
POWER
Engine
401cc, air-cooled, 4-stroke, OHV single
Bore x Stroke
82.0 x 76.0 mm
Compression Ratio
8.6:1
Fuel System
Fuel injection: ø23 mm x 1
Ignition
Battery & coil
Starting
Electric
Lubrication
Forced lubrication, wet sump
Transmission
2-speed automatic, forward/reverse
Final Drive
Gear, selectable 2WD/4WD, dual-mode differential
CAPABILITY
Frame
Ladder type, tubular steel
Front Suspension / Wheel Travel
Independent, MacPherson strut / 78 mm (3.1 in)
Rear Suspension / Wheel Travel
Unit swing axle / 79 mm (3.1 in)
Steering
Rack and pinion
Rake / Trail
9° / 50 mm
Steering Angle (L/R)
41° (IN) / 35° (OUT), 41° (IN) / 35° (OUT)
Front Tires
26 x 9.00-12
Rear Tires
26 x 9.00-12
Front Brakes
Dual hydraulic drums
Rear Brakes
Dual hydraulic drums
Parking Brake
Mechanical, on rear wheels
DETAILS
Dimensions (LxWxH)
2,710 x 1,335 x 1,905 mm (106.7 x 52.6 x 75.0 in)
Wheelbase
1,780 mm (70.1 in)
Road Clearance
190 mm (7.5 in)
Seat Height
840 mm (33.1 in)
Curb Weight*
498 kg (1,098 lb)
Estimated Dry Weight**
480 kg (1,058 lb)
Fuel Capacity
16 litres
Tread (F/R)
1,080 mm (42.5 in) / 1,050 mm (41.3 in)
Turning Radius
3.6 m (11.8 ft)

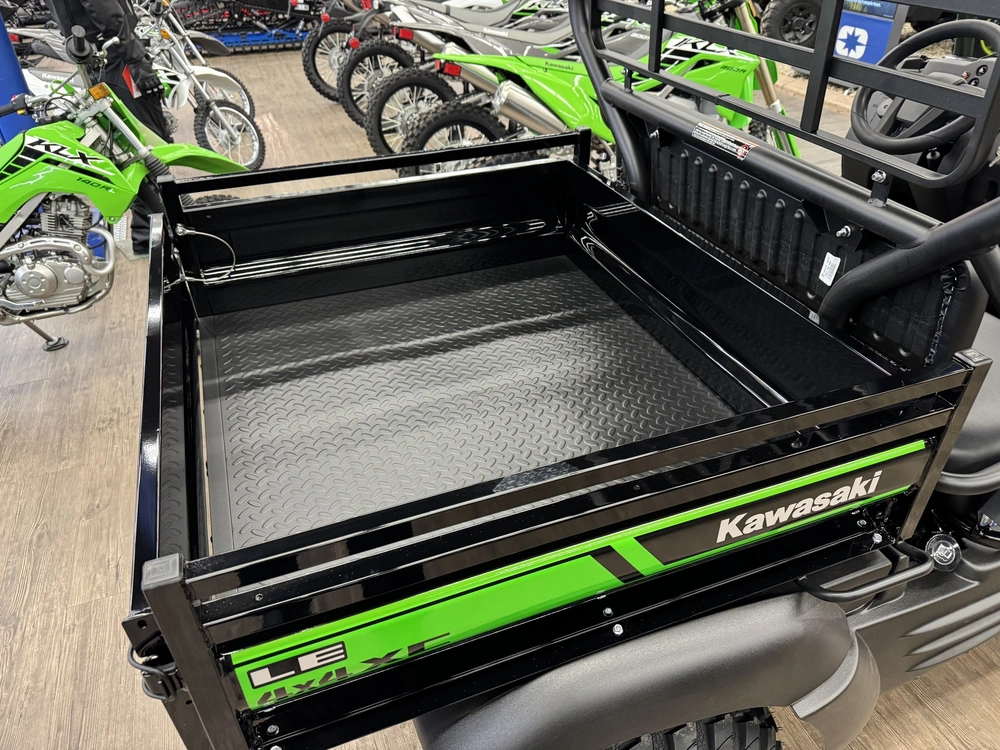

Cargo Bed Dimensions (LxWxH)
905 x 1,040 x 245 mm (35.6 x 40.9 x 9.6 in)
Cargo Bed Capacity
181 kg (400 lb)
Seating Capacity
2
Vehicle Load Capacity
401 kg (884 lb)
Towing Capacity
500 kg (1,100 lb)
Lighting
4x LED headlights
Instrumentation
Digital fuel gauge, hour meter
Warranty
36 months
Kawasaki Protection Plus
12 / 24 / 36 / 48 months
